Abound Ebike

Carry it all with the Abound, Aventon’s first cargo ebike! Its versatile design and step-through frame bring a whole new level to utility. Load it up, stack it high, and bring the kids along too! With a torque sensor and a powerful 750W rear hub motor, hauling everything you need has never been easier. Let Abound handle the heavy lifting with four pedal assist modes: eco, tour, sport, and turbo. The new turn signal feature keeps others informed of your moves, while the front headlight lights up the road ahead. With Abound, the possibilities are endless.

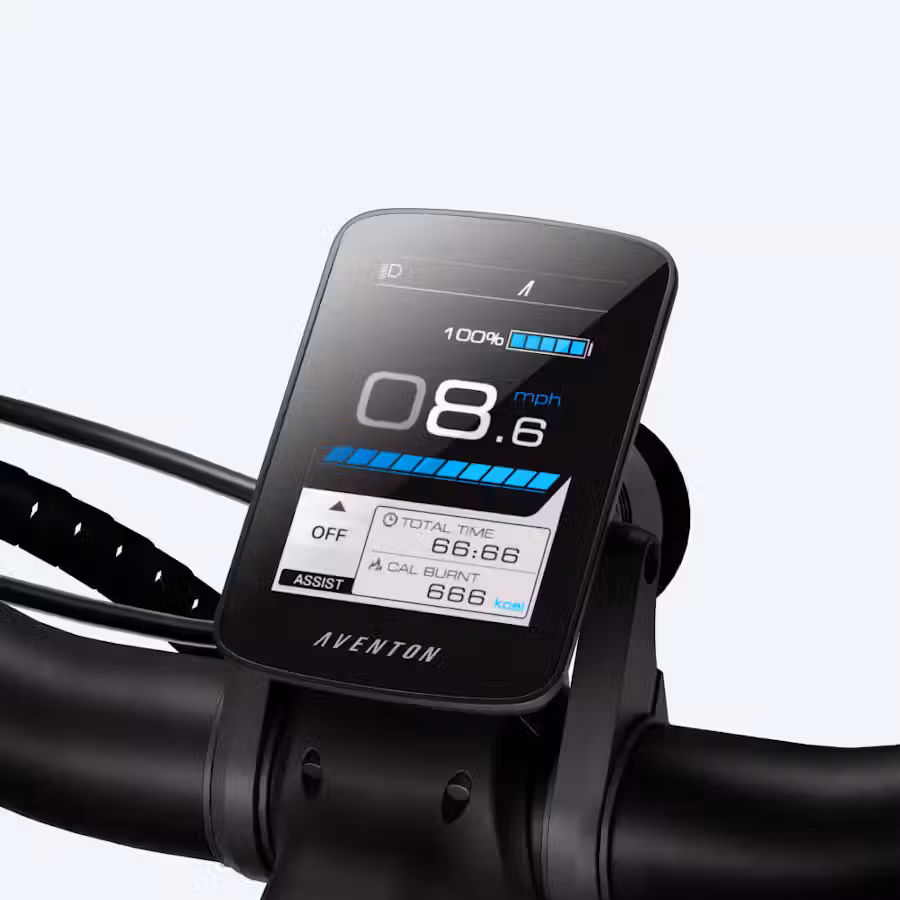

Backlit LCD Display

The Full Color Display provides all the important data you need, including speed, distance traveled, pedal assist level, and much more. Activate your ebike’s integrated lights and sync to the Aventon app to share your rides with friends and a larger Aventon community.

Torque Sensor

The torque sensor recognizes your pedaling output and matches it, amplifying your momentum. This provides a more natural riding experience, conserves battery life, and extends riding range.

Front Suspension

A suspension fork with up to 50mm of travel provides comfort for you and your precious cargo.

Fenders & Rear Rack

Front and rear fenders will keep you protected from the elements, while the rear rack, with up to 143 lb weight capacity, offers more room to bring everything you need, wherever you want to go.

Dropper Seatpost

Abound’s new quick-adjusting dropper seatpost is comfort on command. By squeezing the lever beneath the seat, you can easily glide the seat up or down, giving you ultimate control and comfort over your riding position.

Storage Bag

The storage bag lets you zip up and stash away the personal items you might need to bring along for the long haul around town.

Footboards

Footboards will let you rest assured that your passenger has a place to rest their legs and ride comfortably out of harm’s way.

Integrated Lights w/ Turn Signal Functionality

Integrated front and rear lights allow you to see and be seen on the road, while the all-new turn signal functionality will indicate your next move to motorist and other cyclists.

Hub Motor & Battery

The powerful 750W (sustained) rear hub motor with a 720Wh high capacity integrated battery makes getting around with the goods that much easier.

Pedal Assist & Throttle

Throttle on demand and four levels of pedal assist will maximize your efforts and minimize the amount of energy you use. Tow around town with a top speed of 20 mph and up to 50 miles in range.

General Info
Model	Abound Ebike
Pedal Assist	4 Levels
Range	Up to 50 miles
Total Weight Limit	440 lbs
Ideal Use	Cargo & Utility
Folding	No
Rider Height	4'11" - 6'3"
Weight	82 lbs
Safety Certifications	UL and TUV Safety Certified  UL 2849 / UL 2271
Water Resistance	IPX5
Frameset
Frame	Double-Butted Aluminum Alloy
Fork	Suspension Fork with 50mm travel, with lockout
Footboards	Aluminum
Frame Style	Step-Through
Wheelset
Rim	Double Wall Aluminum, 36h Front & Rear
Tubes	Butyl Rubber, Schrader Valve
Hubs	36H Disc Nutted Front, Nutted Rear
Tires	20 x 2.4
Spokes	Black Stainless 13G Front / Iron 12G Rear
Ebike System
Throttle	Aventon LH Handlebar Mounted
Display	LCD Smart "Easy Read"
Sensors	Double Sided Bottom Bracket Torque Sensor
Charger	48V, 3 Amp Fast Charger
Lights	Front and rear lights integrated
Battery	Samsung 2100 cells, 48V, 14.4Ah, 678.2Wh, UL UN38.3 MSDS certification
Speed	Class 2
Motor	48V, 750W sustained, 1200W peak brushless rear hub motor
Brakes
Brakes	Hydraulic
Drivetrain
Pedals	9/16" Alloy Platform
Bottom Bracket	Square Taper, Sealed, Torque Sensor
Crankset	170mm w/ 52T
Rear Derailleur	Shimano 7 Speed
Cassette	14-28T, 7 Speed
Shift Lever	7 Speed Twist
Chain	148 Link, 7 Speed
Cockpit
Saddle	Aventon Saddle
Seatpost	Dropper Seatpost, 30.9mm × 440mm
Stem	Folding, Height Adjustable, 31.8mm, 9° Rise
Seat Clamp	34.9mm Quick Release
Handlebars	Aluminum 31.8mm, 700mm
Headset	Sealed Bearing Headset
Grips	Ergonomic Comfort
Included Accessories
Kickstand	Included, center mount
Storage Bag	Polyester, EVA Waterproof
Rear Rack Weight Limit	143 lbs
Fenders	Included
Rear Rack	Included
Miscellaneous
Dimensions	Bike Box: 167cm × 37cm × 73cm
Suspension	Front

Technical Overview

The Abound comes as a Class II ebike, featuring both pedal assist and throttle. It can also function with the throttle unplugged and removed, which is ideal for areas where throttles are restricted. Aventon ebikes are designed with an IPX5 rating, meaning they are resistant to low-pressure water jets from any direction. This offers moderate water resistance, making it suitable for light to moderate rain or small puddles. However, IPX5 does not mean waterproof—these bikes are not built for full submersion. Avoid cleaning with a pressure washer or high-pressure sprayer, as it can damage components. *Maximum range is calculated using PAS 1 on flat terrain with a rider weighing 160 lbs.
