Aventon Abound SR Ebike

$1,399.00

Compact cargo bike with added security features.

Size: One Size 4'11” - 6'2”

Color

Clear

SKU: N/A Categories: Cargo Bike, Step-Through Brand: Abound Ebikes, Aventon

Description

Abound SR Ebike

Meet the all-new Abound SR—the ultimate cargo ebike designed to handle anything and everything. Whether you’re cruising city streets or riding with a friend, the Abound SR is always up for the adventure. Its compact frame keeps you nimble, while advanced security† and GPS† features ensure complete peace of mind.

Equipped with an adjustable quill stem, suspension seatpost, and state-of-the-art theft deterrent features†, every ride is smooth, safe, and worry-free. From quick errands to heavy loads, the Abound SR is your perfect partner for conquering the road.

It’s SRsly fun.

Cruise Control

Cruise Control lets you lock in your perfect pace with the push of a button. Whether you’re riding down country roads or open trails, it keeps your speed steady so you can focus on the ride—not the pedals.

Integrated Kickstand Lock

The kickstand lock keeps the bike securely parked by preventing it from being moved or rolled away while the kickstand is down—ideal for securely loading your cargo or passengers and for quick stops during your daily adventures.

Sensor Switch

Like two bikes in one, choose between using a Torque or Cadence sensor with Sensor Switch. Whether you want to feel the power on the pedals or just cruise, Aventon’s Sensor Switch gives you the option to optimize your ride.

Boost Mode

Available on all ACU-equipped, hub-driven ebike models, Boost Mode allows the rider to access up to 120% of specced torque and peak power for up to 30 seconds at a time. It turns steep hills into shortcuts and handles heavy hauls hassle-free.

Hold Mode

Keep gravity at bay when you need a break. Hold Mode keeps your bike from rolling backwards when you need a break from walking it up an incline. Release the Walk Mode button to activate Hold Mode for up to 30 seconds at a time.

Startup Password

The optional startup password adds customizable security by allowing you to set a personal code on the bike’s display, helping to prevent unauthorized use of your bike.

Cross-Model Keyless Battery System

Quickly unlock and remove your battery directly through the bike’s display, offering fast, secure, and convenient access without worrying about keeping track of a set of keys. With cross-model compatibility, your Abound SR battery will also work on the Aventure 3, Abound LR, Level 3, and Pace 4.

Geofencing^†

Geofencing^† lets you set virtual boundaries, eliminating power and sending alerts if the bike leaves a designated area—ideal for added security when parked near schools, shops, or during family outings.

Over-the-Air Updates

Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.

Technical Specification

General Info
Model	Abound SR Ebike
Weight	80 lbs
Total Weight Limit	440 lbs
Rider Height	4'11" - 6'3"
Ebike Class	Class 2 Ebike
Ideal Use	Cargo & Utility
Pedal Assist	3 Levels (with Ride Tune Customization)
Safety Certifications	UL and TUV Safety Certified  UL 2849
Range	Up to 60 miles
Folding	No
Battery Safety Certifications	Certified to UL 2271
Carry Capacity	Carry a Single Passenger
Water Resistance	Bike - IPX5 // Components - IPX6
Frameset
Fork	Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style	Step-Through
Frame	6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Wheelset
Tires	20 x 3.0 urban tire with reflective sidewalls
Wheels	20-inch, 12-gauge, 36-hole, double-wall aluminum, black
Ebike System
Motor Torque	80Nm
ECU	Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle	Aventon LH Handlebar Mounted
Sensors	Double Sided Bottom Bracket Torque Sensor
Charger	Aventon 4A 42V
Display	Aventon BC147
Speed	Class 2
Battery	Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor	Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Brakes
Front Brake	Tektro HD-E3520 hydraulic disc brakes
Rear Brake	Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor	Tektro 180mm 6 bolt
Rear Brake Rotor	Tektro 203mm 6 bolt
Drivetrain
Chain	122 Link, 8 Speed
Chainring	52 tooth
Crank	3pc, 165mm crank arm
Rear Derailleur	Shimano Altus RD-M310 8 Speed
Shift Lever	Shimano SL-M315-8R 8 Speed
Cassette	Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals	9/16" Composite Platform
Chainring BCD	130
Cockpit
Saddle	Aventon by SelleRoyal
Seatpost	30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars	BMX Style, 31.8mm bar clamp, 680mm width
Stem	Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp	34.9mm Quick Release
Grips	Lock-on ergonomic
Included Accessories
Rear Rack	Included
Kickstand	Included: E-lock
Rear Wheel Mesh Guards	Included
Rear Rack Weight Limit	143 lbs

Technical Overview

The Abound SR is a Class II ebike equipped with pedal assist and throttle features. It can also be used without the throttle, making it suitable for areas where throttles are not allowed. Both the ebike and its battery are UL Certified—UL 2849 for the bike and UL 2271 for the battery. Aventon ebikes have an IPX5 rating, offering protection against low-pressure water jets from any direction, making them resistant to light or moderate rain and small puddles. However, they are not waterproof and not meant for full submersion. Avoid cleaning with a pressure washer or high-pressure sprayer, as it may damage the components. *Maximum range is based on PAS 1 on flat terrain with a 160-pound rider.

Geometry

Abound SR Ebike is available in 1 sizes to suit most adults.

Frame Size	One size fits most
A - Seat Tube Length	380mm (14")
B - Top Tube Length Horizontal	610mm (24")
C - Bottom Bracket Drop	-30mm (-1")
D - Head Tube Length	210mm (8")
E - Head Tube Angle	69°
F - Seat Tube Angle	70°
G - Rear Chainstay Length	480mm (18")
H - Front Wheel Center	673mm (26")
I - Wheelbase	1151.5mm (45")
J - Reach	420mm (16")
K - Stack Height	520mm (20")
L - Fork Length	395mm (15")
M - Fork Offset	38mm (1")
N - Trail	63mm (2")
Rider Height	4'11" - 6'3"

Additional information

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Aventon Abound SR Ebike”

Want a custom configuration?

Aventon Abound SR Ebike

Abound SR Ebike

Technical Overview

Geometry

Reviews

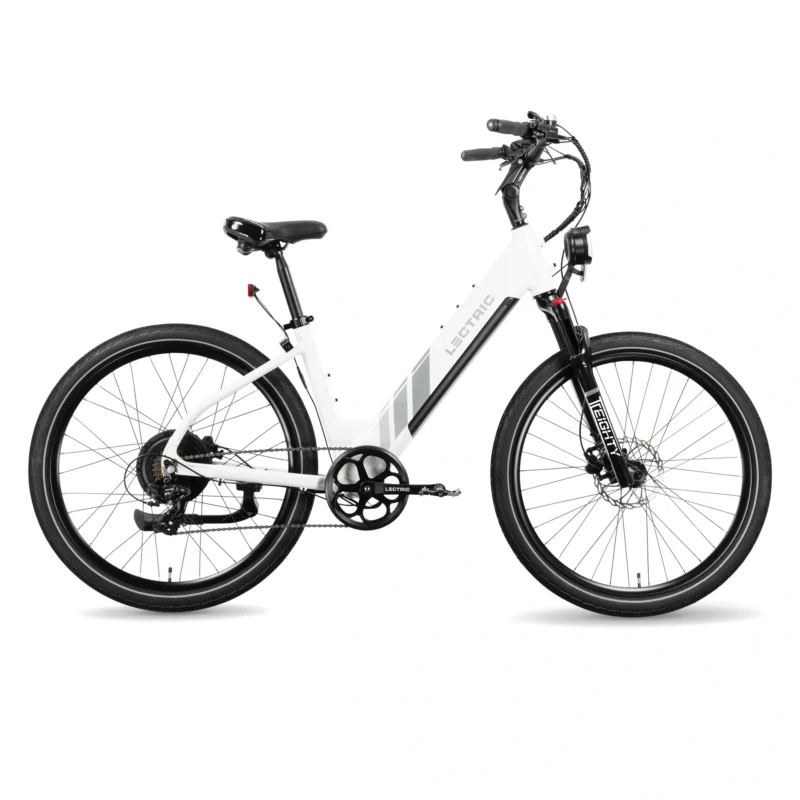

Lectric XPress Step-Thru eBike
