Aventon Aventure 3 Step Over Ebike

$1,799.00

Embrace the All-Terrain

Size

Color

Clear

SKU: N/A Categories: Fat Tire, Off-road Bikes, Step Over Brand: Aventon, Aventure Ebikes

Description

Aventure 3 Ebike

The Aventon Aventure 3 is the perfect Ebike for adventure lovers, blending tough performance with modern technology. With 4″ fat tires, a suspension fork, and an upgraded suspension seatpost, it’s designed to handle any terrain effortlessly. Now featuring ACU technology with 4G†/GPS† capabilities and advanced anti-theft measures, the Aventure 3 keeps you connected and your bike secure, so all you need to focus on is your next destination. Its 750W motor, 65-mile range, and customizable Ride Tune provide the perfect amount of power for wherever you want to go. Ready to explore? The Aventure can handle the ride.

Cruise Control

Cruise Control lets you lock in your perfect pace with the push of a button. Whether you’re riding down country roads or open trails, it keeps your speed steady so you can focus on the ride—not the pedals.

Integrated Rear Wheel Lock

An integrated rear wheel lock adds an extra layer of security by immobilizing your bike when parked, preventing it from being easily rolled away. Controlled through the Aventon app or directly on the bike display, this lock deters theft and gives you peace of mind when leaving your bike unattended.

Sensor Switch

Like two bikes in one, choose between using a Torque or Cadence sensor with Sensor Switch. Whether you want to feel the power on the pedals or just cruise, Aventon’s Sensor switch gives you the option to optimize your ride.

Boost Mode

Available on all ACU-equipped, hub-driven ebike models, Boost Mode allows the rider to access up to 120% of specced torque and peak power for up to 30 seconds at a time. It turns steep hills into shortcuts and handles heavy hauls hassle-free.

GPS^† Tracking

With built in GPS^†, you can easily track your bikes’ location through the Aventon app, and even receive alerts if it’s moved unexpectedly.

Hold Mode

Keep gravity at bay when you need a break. Hold Mode keeps your bike from rolling backwards when you need a break from walking it up an incline. Release the Walk Mode button to activate Hold Mode for up to 30 seconds at a time.

Ride Tune

Easily customize your ride feel through the Aventon app by fine tuning your torque, assistance, and pedal response in each of the three pedal assist modes

Cross-Model Keyless Battery System

Quickly unlock and remove your battery directly through the bike’s display, offering fast, secure, and convenient access without worrying about keeping track of a set of keys. With cross-model compatability, your Aventure 3 battery will also work on the Abound SR, Abound LR, Level 3, and Pace 4.

Over-the-Air Updates

Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.

Technical Specification

Category	Specification
General Info
Model	Aventure 3 Ebike
Weight	76 lbs
Total Weight Limit	400 lbs
Rider Height	R: 5'3" -5'10" \| L: 5'10" - 6'4"
Ebike Class	Class 2 Ebike
Range	Up to 65 miles
Battery Safety Certifications	Certified to UL 2271
Ideal Use	All-Terrain
Bike Safety Certifications	UL Safety Certified  UL 2849
Water Resistance	Bike - IPX5 // Components - IPX6
Frameset
Frame	6061 Aluminum, Gravity Cast Front Triangle
Fork	Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing	190mm
Fork Spacing	135mm
Frame Style	Step-Over
Wheelset
Front Wheel	26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel	26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires	Inova 26x4.0 puncture resistant
Ebike System
Speed	Class 2
Motor	36V, 750W Hub Drive
Motor Torque	80Nm
Motor Power	750W (1188 Peak)
Display	Aventon BC280
Battery	Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight	8.7lbs
Controller	36V/33A
Throttle	Aventon LH Handlebar Mounted
Sensors	Double Sided Bottom Bracket Torque Sensor
Charger	36V Output: 42V/ 4A
Charging time from 0% to 100%	5 hours
Lights	Front and rear lights integrated
Brakes
Front Brake	Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake	Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor	Tektro 180mm 6 bolt
Rear Brake Rotor	Tektro 180mm 6 bolt
Drivetrain
Rear Derailleur	Shimano Altus 8-Speed
Shifter	Shimano 8-Speed Trigger
Chain	7/8 Speed 118L
Cassette	12-32T / 8 Speed Shimano CS HG200-8
Chainring	48T
Chainring BCD	N/A
Crankset	3pc, 170mm crank arm
Bottom Bracket	100x177 Square Taper, Double Sided Torque sensor bottom bracket
Pedals	9/16" Alloy Platform
Cockpit
Saddle	Aventon Saddle
Seatpost	Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp	34.9mm
Handlebars	Aluminum 31.8mm, 680mm
Grips	Aventon Lock on grips
Headset	Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand	Included, rear mount
Rear Rack	Included
Fenders	Included

Technical Overview

The Aventure 3 comes as a Class II ebike with pedal assist and throttle. It can also be used with the throttle unplugged and removed, making it suitable for areas that only allow Class I ebikes or where throttles are banned. Aventon ebikes are rated IPX5, meaning they’re protected against low-pressure water jets from any direction. This gives them moderate water resistance, so you can ride in light to moderate rain or through small puddles. However, they’re not waterproof and shouldn’t be fully submerged. Avoid using a pressure washer or high-pressure sprayer to clean your bike, as pressurized water can still damage parts. *The maximum range is calculated using PAS 1 on flat terrain with a rider weight of 160 lbs.*

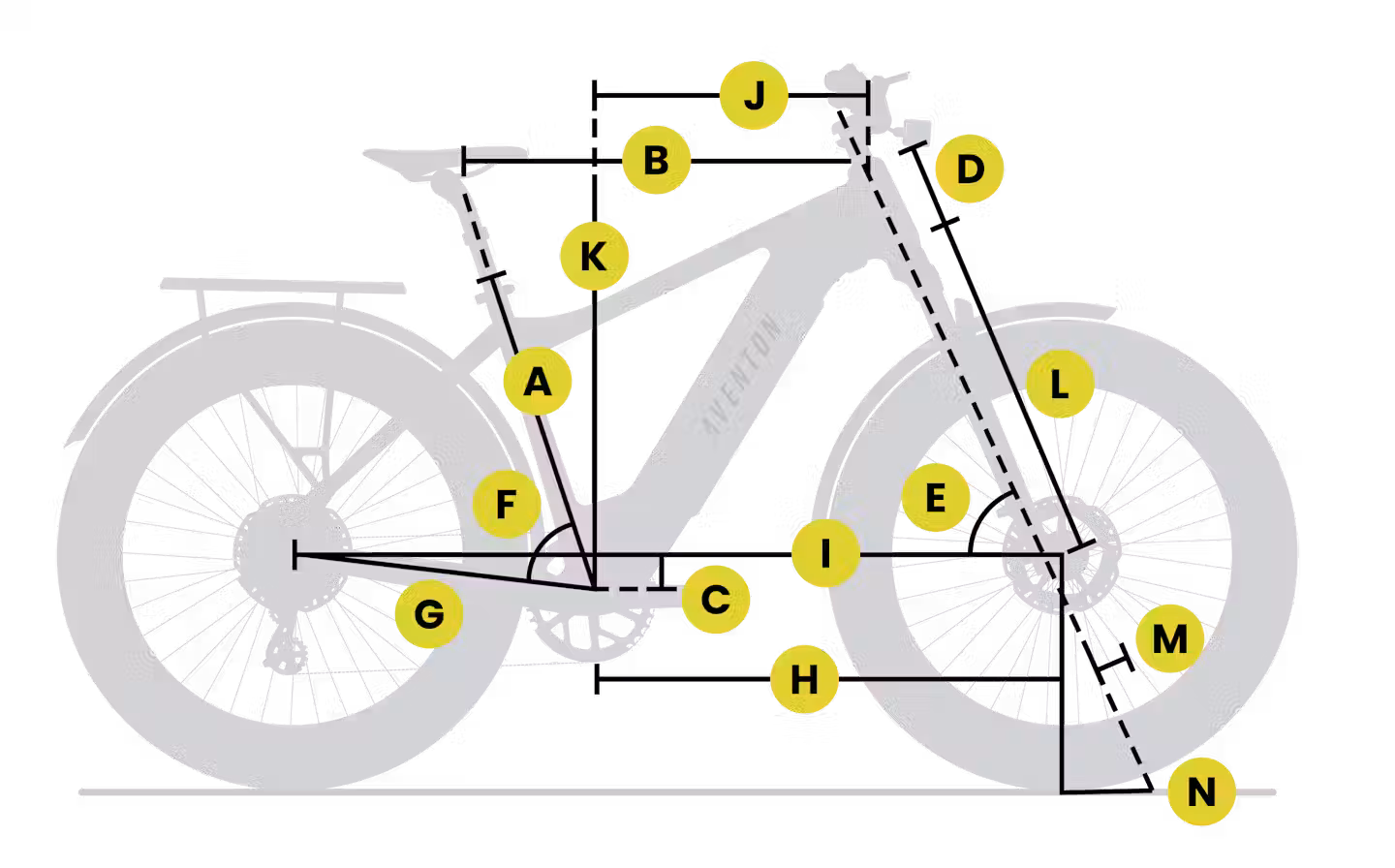

Geometry

Aventure 3 Ebike is available in 2 sizes to suit most adults.

Frame Size	Regular	Large
A - Seat Tube Length	440mm (17")	500mm (19")
B - Top Tube Length Horizontal	605.5mm (23")	643.5mm (25")
C - Bottom Bracket Drop	65mm (2")	65mm (2")
D - Head Tube Length	140mm (5")	140mm (5")
E - Head Tube Angle	67°	67°
F - Seat Tube Angle	72°	72°
G - Rear Chainstay Length	470mm (18")	470mm (18")
H - Front Wheel Center	693.6mm (27")	731.5mm (28")
I - Wheelbase	1156.1mm (45")	1194.1mm (47")
J - Reach	390mm (15")	428mm (16")
K - Stack Height	663.1mm (26")	663.1mm (26")
L - Fork Length	525mm (20")	525mm (20")
M - Fork Offset	43mm (1")	43mm (1")
N - Trail	102.5mm (4")	102.5mm (4")
Wheel Size in Inches	26" x 4.0"	26" x 4.0"
Rider Height (Range)	160cm - 175cm (5'3" - 5'10")	175cm - 195cm (5'10" - 6'4")
